Temporary Bridges

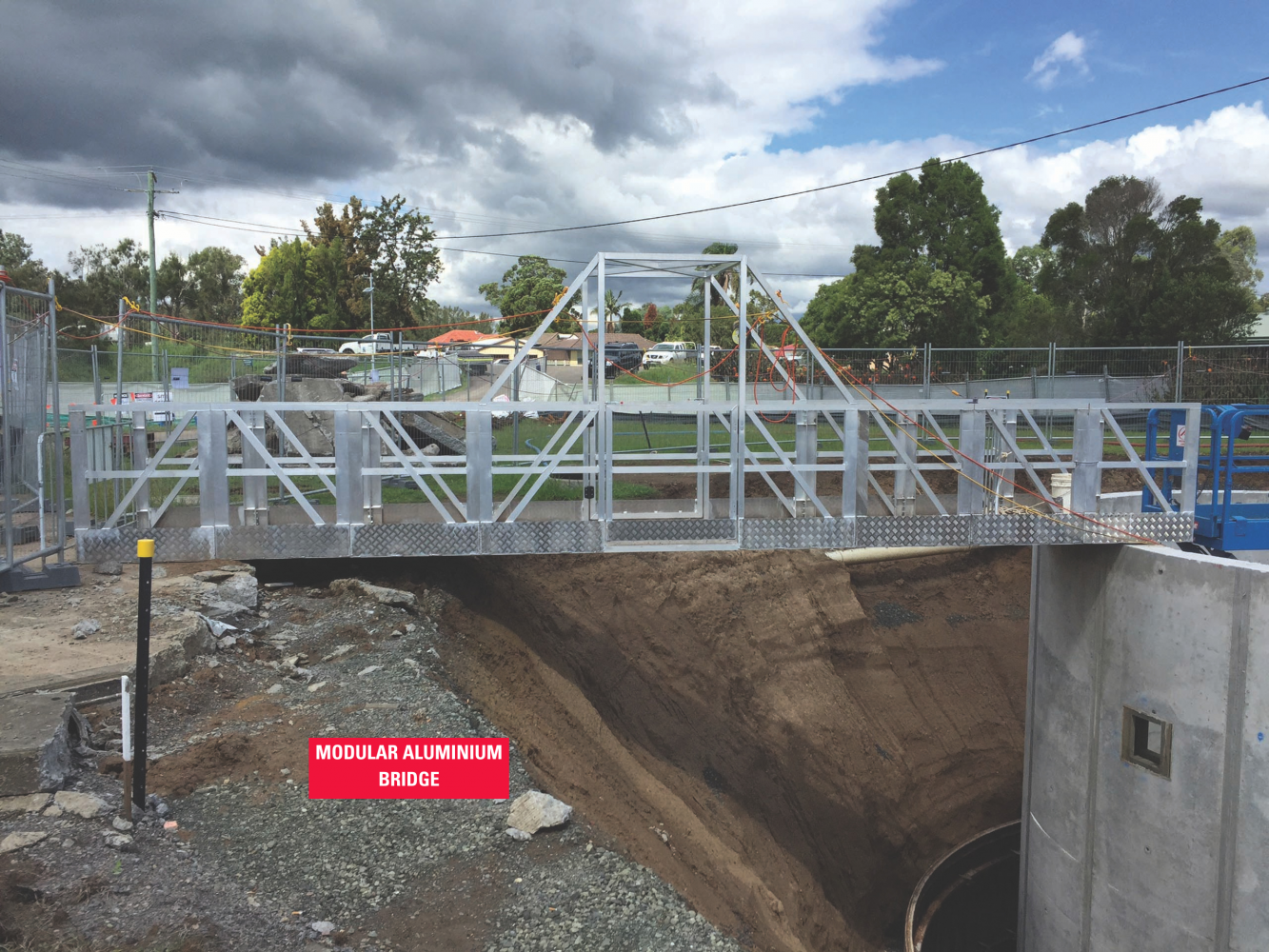

MODULAR ALUMINIUM BRIDGE SPECS
| Length | Width | Load Type | Max Span | Weight |
|---|---|---|---|---|
| 1m | 1.5m | Pedestrian | 0.5m | 60kg |
| 2m | 1.5m | Pedestrian | 1.5m | 120kg |
| 3m | 1.5m | Pedestrian | 2.5m | 210kg |
| 4m | 1.5m | Pedestrian | 3.5m | 240kg |
| 5m | 1.5m | Pedestrian | 4.5m | 300kg |
| 6m | 1.5m | Pedestrian | 5.5m | 360kg |
| 7m | 1.5m | Pedestrian | 6.5m | 420kg |
| 8m | 1.5m | Pedestrian | 7.5m | 480kg |
| 9m | 1.5m | Pedestrian | 8.5m | 530kg |
| Ramp | 1.5m | Pedestrian | 25kg |

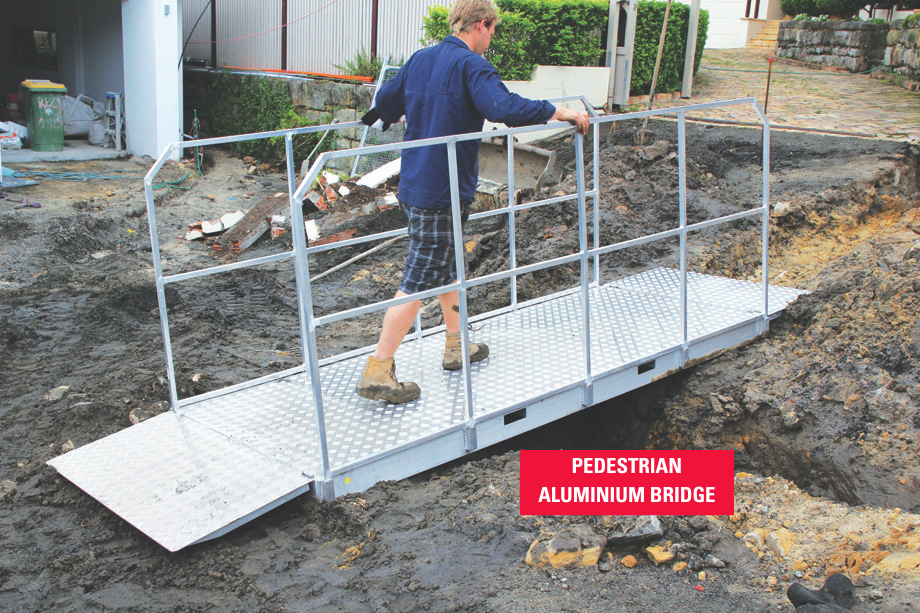

PEDESTRIAN BRIDGE SPECS
| Width | Length | Load Type | Weight |
|---|---|---|---|
| 1.2m | 3m + 0.6m ramps | Pedestrian | 150kg |

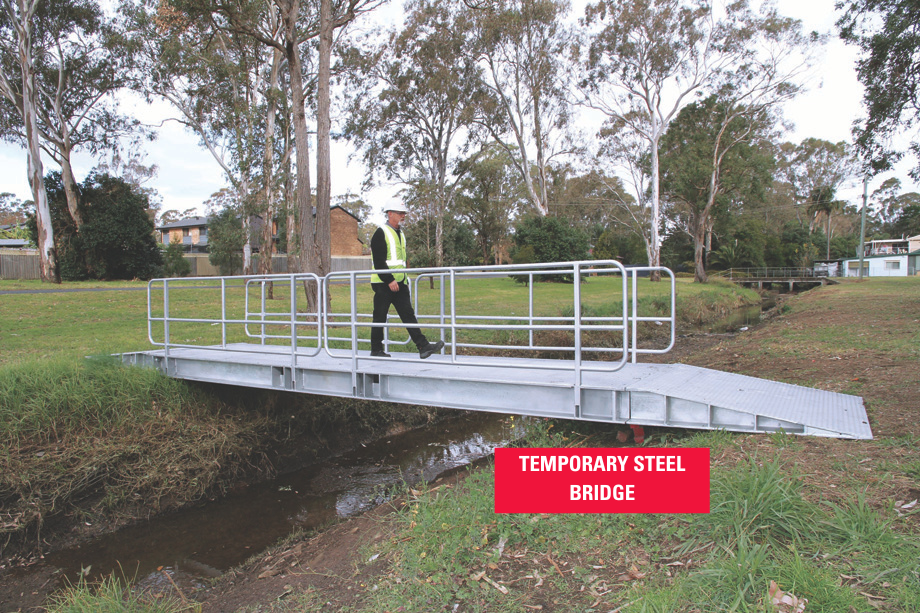

steel vehicle bridge specs
| Length | Width | Load Type | Max Span | Weight |
|---|---|---|---|---|
| 4.5m | 1.5m (3m when doubled up) | Truck, Car & Pedestrian | 4.0m | 2294kg |
| 6m | 1.5m (3m when doubled up) | Truck, Car & Pedestrian | 5.5m | 2753kg |
| 7.5m | 1.5m (3m when doubled up) | Truck, Car & Pedestrian | 7.0m | 4535kg |
| 9m | 1.5m (3m when doubled up) | Truck, Car & Pedestrian | 8.5m | 5738kg |
| 10.5m | 1.5m (3m when doubled up) | Truck, Car & Pedestrian | 10.0m | 6370kg |
| Ramp | 1.5m (3m when doubled up) | Truck, Car & Pedestrian | 450kg |
Temporary Bridges
Description
Shore Hire carries a range of temporary bridges for both pedestrian and light vehicle access. Temporary bridges are used on-site to provide simple and efficient temporary access over uneven surfaces or small trenches.
Shore Hire stock steel bridges, modular bridges, aluminium bridges and more across our branch network, for more information on bridge dimensions, please view the technical information on this page.
Features
- Lightweight and quick to install for labour and transport savings
- Complete with handrails and access ramps for full peace of mind
- Wheelchair and mobility scooter-accessible
- Large spanning capacity to suit your project
- Manufactured to AS standards
Suited For
Shore Hire’s range of temporary bridges are used to provide access in and out of sites and, depending on which bridge you use, may provide usability for just pedestrians or pedestrians and light vehicles.
