Portable Gantry 3m + 3.3m
Additional SPECIFICATIONS
- 1000kg WLL Goods Lift
- 2 Person Fall Arrest System
- Lightweight and Portable
- Aluminium alloy and 300 series stainless steel construction for corrosion resistance and durability
- Pivoting and height-adjustable legs allow for use on uneven or unlevel ground up to a gradient of 7.5°
- Heavy duty 150mm diameter hinged castor wheels
- Easily assembled by two persons in under 5 minutes with no need for tools or additional fasteners
- Quick-release safety pins
- Adjustable span (1.7m–3.3m)
- 1 x Adjustable Single Person Anchor Trolley
Portable Gantry 3m + 3.3m
Description

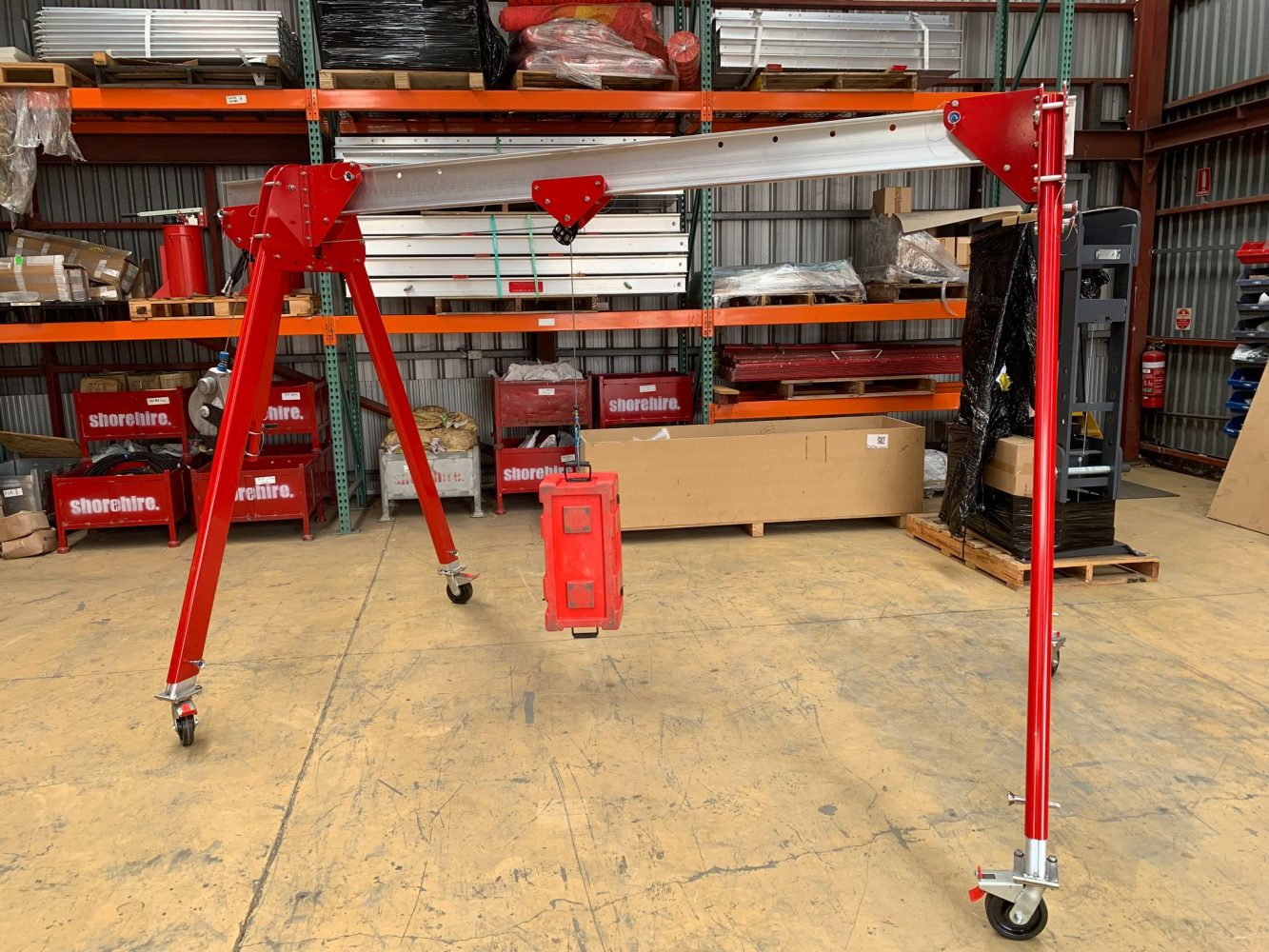

The Portable Gantry is a versatile, modular, and non-permanent fall arrest system that is primarily used for confined space entry work as well as for lifting and lowering heavy loads. The Portable Gantry is an A-frame lifting system on four wheels at the base of each column. The columns are height adjustable, with a range of 1.7–3.3m, so the gantry can be used in a variety of applications.
Features
- Allows for easy positioning of equipment and materials in and out of confined spaces
- The adjustable height feature enables adaptation to different confined space entry scenarios
- Ideal for use in areas where traditional fixed-lifting equipment cannot be deployed
- Can be quickly disassembled and transported to different locations
- Can span trenches or pump stations where traditional Davit Arms can’t be used
- Compatible with our Ikar 24m Fall Arrest Recovery Winch
Suited For
Any confined space entry work where people may be working inside an excavation or trench and need to be lowered inside, or to lower and lift heavy equipment.
